In modern industrial-scale production systems for high-value crops — including premium medicinal herbs, specialty botanical products, and cannabis flowers — cultivation technologies have already entered a new era of automation and ultra-high-density production. From multi-layer vertical farming to fully controlled plant factories, biomass output per square meter has increased exponentially.
However, when massive harvest volumes arrive at post-harvest facilities in cyclical and concentrated waves, traditional drying rooms instantly become the most fragile bottleneck in the entire supply chain.
Conventional single-layer drying tables or hanging-dry methods are fundamentally low-density processes that rely heavily on large floor areas. These outdated systems not only waste tremendous amounts of horizontal space, but also impose significant operational burdens through high facility rental costs, energy consumption, and labor requirements.
More critically, traditional drying environments lack precise control over aerodynamics and microclimates, often leading to active compound degradation, microbial contamination, uneven drying, and irreversible quality loss during large-scale processing.
To resolve the spatial asymmetry between high-density cultivation and low-density drying, multi-tier drying racks have emerged as a system-level solution that integrates spatial engineering with advanced fluid dynamics. These systems are rapidly redefining industrial post-harvest standards for high-value crops.
This article explores how multi-tier drying systems achieve the perfect balance between product quality and operational efficiency within high-density processing environments through advanced spatial geometry, controlled microclimate physics, plant compound preservation, and lean industrial logistics.
1. Spatial Geometry Reconstruction: Mathematical Optimization of Volume Efficiency and Surface Area
From an industrial engineering perspective, a drying facility is essentially a reactor for moisture evaporation and heat-and-mass transfer.
Within this reactor, the two key physical variables determining production capacity are:
1.1 Exponential Improvement in Volumetric Space Utilization
In standard industrial facilities, ceiling heights typically range from 3.5 to 6 meters or even higher. Under traditional single-layer drying configurations, less than 20% of the vertical space is effectively utilized. The remaining air volume simply becomes expensive empty space that still requires heating, cooling, and environmental control.
Multi-tier drying racks transform this inefficiency by constructing highly organized vertical drying matrices that fully utilize the height of the facility.
For example, a standard five-tier mobile vertical drying rack system can increase effective drying capacity by approximately 400% within the same building footprint.
This means a harvest batch that previously required 1,000 square meters of drying space can now be processed within only 200 square meters of tightly controlled environmental space.
By exchanging height for floor area, this spatial strategy eliminates the need for costly facility expansion as production capacity increases.
1.2 The Physical Nature of Non-Saturated High-Density Exposure
It is important to clarify that high-density drying in multi-tier systems does not mean compressing or overcrowding plant materials together.
On the contrary, the core principle is:
Overall high-density facility utilization combined with localized high-surface-area exposure.
Through precision-layered mesh trays or vertical hanging structures, plant material remains evenly distributed in loose, single-layer, non-overlapping arrangements.
Every flower, leaf, or botanical structure is maximally exposed to surrounding airflow.
This design prevents mechanical damage caused by compression while dramatically increasing effective fluid-contact surface area, establishing the geometric foundation for efficient heat-and-mass transfer.
2. Multi-Dimensional Physical Field Interactions: Controlled Microclimates and Fluid Dynamic Regulation
Once drying density increases several-fold, the greatest engineering challenge becomes the complex microclimate heterogeneity inside the vertical drying matrix.
Within enclosed multi-tier environments, the behavior of heat transfer, moisture evaporation, and airflow differs dramatically from open drying spaces.
2.1 Vertical Temperature Gradients and Thermal Buoyancy Effects
According to thermodynamic principles, heated air naturally rises due to density differences, creating natural convective flow.
Inside high-density vertical drying systems, insufficient mechanical airflow intervention can create severe stratification effects:
Cooler air near lower rack levels absorbs latent heat from evaporation, becomes denser, and sinks.
Warmer air generated by heating systems and fans accumulates near upper levels.
This vertical temperature gradient causes upper-level materials to dry significantly faster than lower-level products, leading to inconsistent moisture content across the same production batch.
Such inconsistencies fail to meet strict industrial quality standards.
2.2 Moisture Transfer Resistance and Boundary Layer Effects
As moisture evaporates from plant surfaces, a thin layer of stagnant or semi-stagnant high-humidity air forms directly around the material surface.
In fluid mechanics, this phenomenon is known as the concentration boundary layer.
In densely stacked multi-tier systems, improper spacing between rack levels can severely restrict the penetration of dry air into these boundary zones.
As the humid boundary layer thickens, boundary-layer resistance increases dramatically, reducing the Vapor Pressure Deficit (VPD) between plant tissue moisture and surrounding air.
Once VPD stagnates, drying rates collapse, greatly increasing the risk of microbial spoilage and mold growth.
2.3 CFD-Based Forced Convection Airflow Optimization
To overcome these complex physical challenges, modern multi-tier drying systems rely on precisely engineered airflow distribution strategies.
Using Computational Fluid Dynamics (CFD) simulations, engineers create three-dimensional airflow models for the entire drying facility.
Instead of random air circulation, airflow is carefully directed through precision duct systems positioned along rack sides or overhead structures, creating either:
Air velocity is typically controlled within the optimal range of 0.2 to 0.5 meters per second.
This airflow range is carefully selected because it:
Generates sufficient turbulence to disrupt boundary-layer resistance and accelerate evaporation
Avoids excessive airflow that could physically damage delicate plant structures such as trichomes or glandular tissues
Through optimized forced convection, temperature variation throughout the drying matrix can be maintained within ±0.5°C, while relative humidity fluctuation remains within ±2%.
This ensures fully homogenized drying conditions across every rack level.
3. Plant Chemistry and Biosafety: Preserving Quality in High-Density Drying Environments
The drying process for high-value crops is fundamentally a controlled termination of biochemical activity combined with the stabilization of flavor and active compounds.
In multi-tier high-density drying systems, the ultimate measure of performance lies in preserving sensitive secondary metabolites while rapidly removing moisture.
3.1 Preservation of Volatile Terpenes and Heat-Sensitive Compounds
For specialty herbs and cannabis flowers, commercial value is heavily dependent on the integrity of terpenes and cannabinoids.
Many volatile terpenes — such as myrcene and limonene — possess extremely low boiling points and rapidly evaporate under prolonged heat exposure.
Because multi-tier systems provide enormous airflow-contact surface area combined with efficient environmental control, operators can successfully implement Low-Temperature Long-Time (LTLT) drying strategies.
Under carefully controlled conditions of:
the system maintains highly efficient dehydration while preserving volatile aromatic compounds.
This gentle dehydration pathway prevents the chemical oxidation and thermal degradation commonly associated with traditional high-temperature drying methods.
3.2 Structural Stabilization and Morphological Preservation
As moisture leaves plant tissues during drying, structural shrinkage becomes inevitable.
If drying occurs unevenly, surface tissues may harden too quickly, forming a rigid outer shell — a phenomenon known as case hardening — which traps internal moisture.
Modern multi-tier mesh trays are typically constructed from:
The mesh structure provides 360-degree ventilation, allowing stress distribution to remain uniform throughout the drying process.
As a result, finished materials maintain their natural three-dimensional structure without curling, flattening, or collapsing, significantly improving final product appearance and market value.
3.3 Dynamic Elimination of Microbial Risks and Cross-Contamination Prevention
In high-density drying environments, localized humidity dead zones can quickly trigger explosive mold development from pathogens such as Botrytis or Aspergillus species.
Modern multi-tier drying racks therefore incorporate strict hygienic engineering principles, including:
Seamless weld construction and electro-polished surfaces to eliminate microbial hiding points
Controlled airflow isolation strategies that prevent debris or airborne particles from contaminating lower rack levels
These measures ensure both physical separation and dynamic sanitation throughout the drying process.
4. Lean Logistics and Industrial Automation in Modern Multi-Tier Drying Systems
An effective industrial drying solution must integrate not only biological and physical requirements, but also the broader lean manufacturing framework of the facility itself.
The evolution of multi-tier drying systems reflects a major shift from static storage thinking toward dynamic supply-chain engineering.

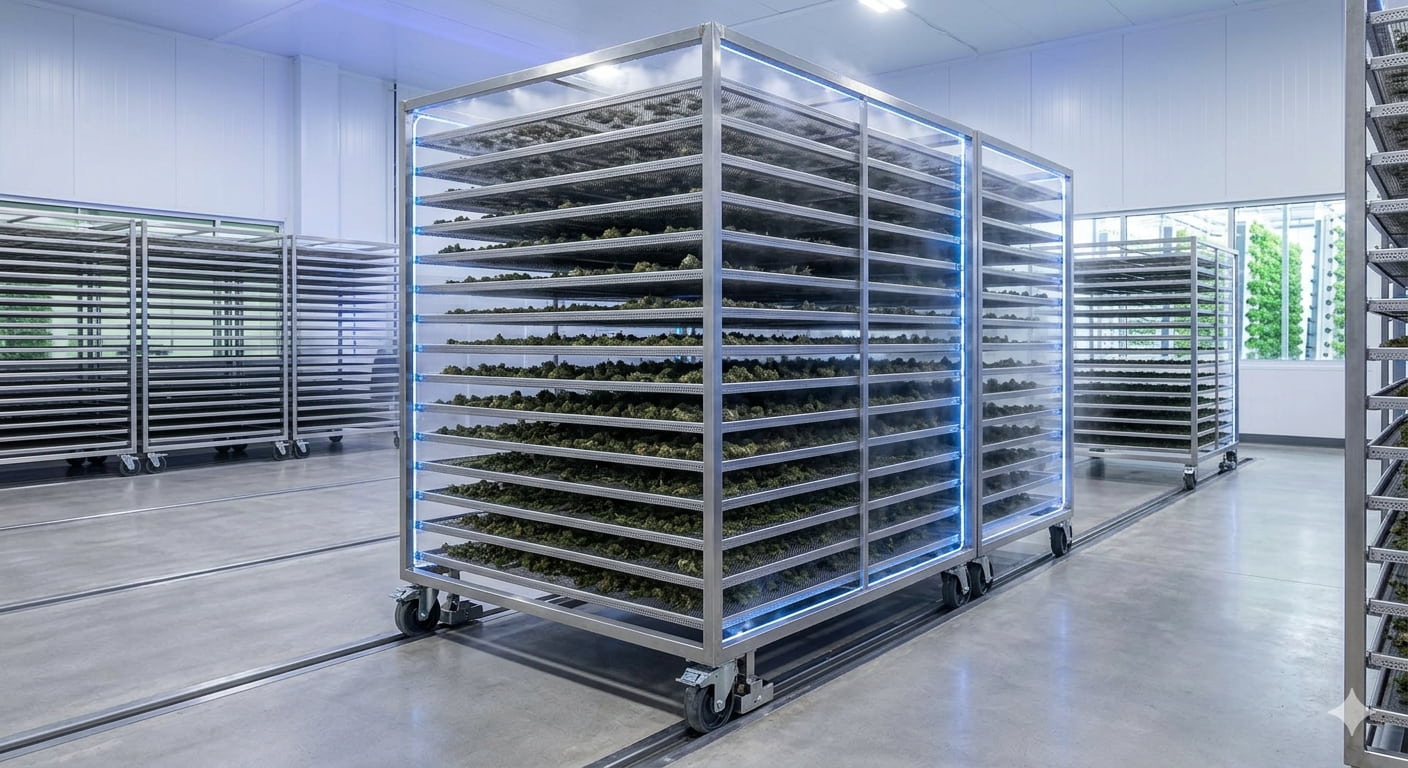

4.1 Mobile Rack Structures and Variable Rail Systems
Large-scale post-harvest facilities process massive quantities of wet incoming biomass and finished dried product every day.
Traditional fixed rack systems force workers to navigate narrow aisles with transport carts, creating:
Modern advanced systems increasingly adopt mobile rail-based rack architectures.
Entire rack assemblies are mounted on precision low-friction floor tracks. Through manual crank systems or motorized drive mechanisms, racks can move laterally like compact archive shelving systems.
Only the active working aisle opens when needed.
By eliminating permanently fixed aisles, this design increases practical facility space utilization by an additional 30%–50% beyond the gains already achieved through vertical stacking.
Nearly the entire drying room becomes active productive space.
4.2 Ergonomics and Modular Loading Systems
As vertical height increases, ergonomic accessibility becomes a critical concern.
Modern multi-tier systems therefore emphasize modularity and human-centered engineering.
Tray rails are designed with:
This allows workers to smoothly load and unload fully filled mesh trays without excessive bending, stretching, or lifting.
Rack heights are carefully designed according to anthropometric standards to ensure upper levels remain comfortably accessible, or alternatively integrate seamlessly with semi-automated lifting systems and stacker equipment.
These ergonomic optimizations dramatically reduce labor costs and operational errors during peak harvest periods.
5. Lifecycle ROI and Energy Efficiency Modeling
For management teams, adopting high-density multi-tier drying systems represents not merely a technological upgrade, but a major long-term capital investment.
Their economic value must therefore be evaluated through full lifecycle cost analysis.
5.1 Optimization of Capital Investment and Operational Costs
Although advanced mobile multi-tier drying systems with precision airflow engineering and sanitary construction involve higher upfront equipment costs than basic single-layer shelving systems, their long-term financial advantages are overwhelming.
Facility and Infrastructure Savings
Traditional drying operations require massive buildings to handle seasonal harvest volumes.
In contrast, multi-tier drying systems can reduce required facility footprint by more than 70%, dramatically lowering construction and real-estate expenses.
HVAC Energy Efficiency
Conventional drying rooms waste enormous amounts of energy conditioning unused empty air volume.
Because multi-tier systems utilize compact spatial layouts, HVAC thermal efficiency approaches 90%, significantly reducing electricity and climate-control costs per unit of production.
Labor and Logistics Optimization
Traditional facilities involve long transport routes and inefficient material handling.
By contrast, modular batch processing combined with mobile rack systems and optimized transport paths can improve labor productivity by approximately 200%.
5.2 Shelf-Life Optimization and Capital Turnover Acceleration
In modern commercial agriculture, time directly translates into capital efficiency.
Through highly optimized microclimate airflow systems, multi-tier drying solutions can shorten drying cycles for certain specialty crops by 15%–25%.
For example, a traditional 10-day slow-drying process may be reduced to approximately 7.5 days without sacrificing active compound integrity.
Shorter drying cycles dramatically improve facility throughput and annual production capacity, allowing the same infrastructure to process more harvest batches within a single season.
Conclusion: The Inevitable Evolution of High-Value Crop Post-Harvest Processing
The ultimate goal of industrialized controlled-environment agriculture is to maximize biological output within precisely managed physical systems while minimizing resource consumption.
The emergence of multi-tier drying racks completes the final missing piece in the high-density evolution of modern post-harvest processing.
These systems are far more than simple vertical storage structures. They represent highly integrated engineering ecosystems combining:
By overcoming the geometric limitations of traditional drying facilities and solving microclimate heterogeneity through intelligent airflow control, multi-tier systems achieve remarkable improvements in both operational efficiency and product quality while ensuring microbial safety and preserving sensitive secondary metabolites.
For modern agricultural and biopharmaceutical enterprises seeking large-scale, standardized, and premium-quality production, abandoning inefficient flat drying systems in favor of vertically optimized, precision-controlled drying environments has become an irreversible industry trend.
In this ongoing transformation of industrial post-harvest infrastructure, many leading global companies are increasingly adopting professional-grade Multi-Tier Drying Racks that integrate seamlessly with factory logistics workflows and environmental control systems. These advanced engineered drying platforms are rapidly becoming a strategic foundation for building highly efficient post-harvest processing centers and establishing long-term competitive advantages in the global market.
