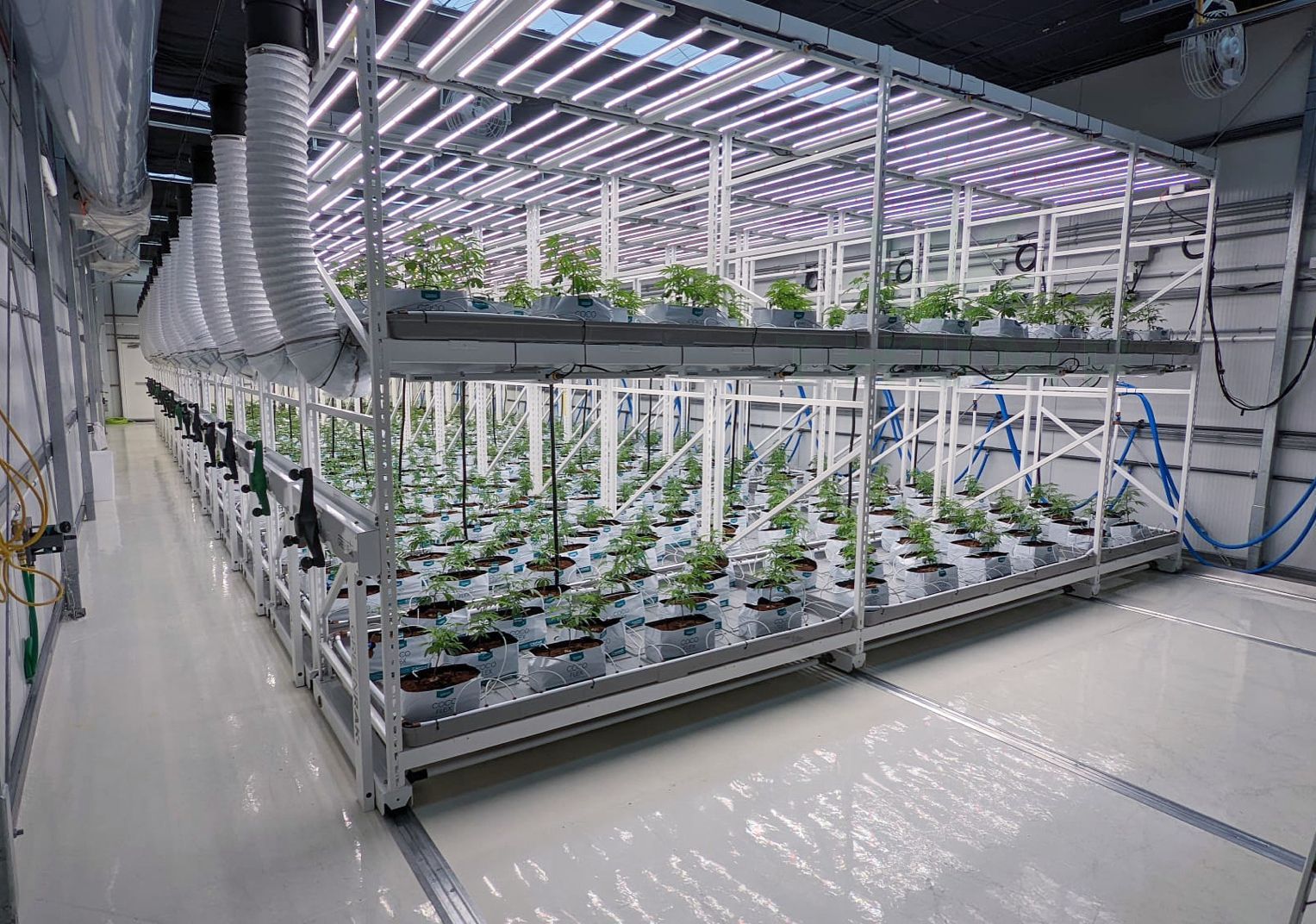

Mobile Vertical Grow Rack

The track-mounted multi-layer mobile nursery bed primarily consists of a V-shaped track square stainless steel base, drive shaft control arm, heavy-duty H-shaped load-bearing wheels, and drive shaft, as well as a heavy-duty custom-made frame.

The track-mounted multi-tier mobile nursery bed maximizes greenhouse space and height, effectively expanding usable greenhouse space and improving ground utilization. It features uniform layer loading, strong load-bearing capacity (90 tg/m²), easy overall management, convenient mobility, and locking functionality with anti-tip devices.

Dimensions

• Available width: 3ft/4ft/5ft

• Available length: 8ft/10ft/12ft/16ft/20ft/32ft/40ft or customized.

• Tray: ABS 3mm

• Height: 10-15ft of customized.

Specification

• Heavy Duty Rack.

• Anti tip design for safety.

• All hardware is stainless steel.

• no cross or partition between racks / trays.

• All wheels, Shafts and Rails made of stainless.

• Low slope tracks design for carts pass over easily.

• no limit for tray length, make the best use of grow rooms.

• All handles and panel made of stainless for easy cleaning.
