The way we grow plants indoors has been transformed in the past two decades, moving from small experimental setups to highly engineered production facilities that rival outdoor farms in efficiency and scale. At the heart of this transformation lies a piece of equipment so deceptively simple that it often goes unnoticed: the plant tray. In traditional horticulture, trays were passive objects—mere containers to hold soil or growing medium. In modern vertical growing systems, however, they have become dynamic, mobile, and multifunctional components, integral to both plant health and operational efficiency. Designing functional tray systems for vertical plant production units is no longer a matter of choosing a size and material—it is a complex exercise in engineering, ergonomics, plant science, and workflow optimization.
In large-scale indoor farms and research facilities, the trays are rarely static. They roll, tilt, drain, and in some cases even carry nutrient solutions directly to the roots. Rolling grow trays move along rails or wheels, allowing workers to access crops without physically entering cramped aisles. A hydroponic rack system might integrate the trays into a network of pumps, pipes, and drains that automatically deliver water and nutrients. Mobile vertical grow racks can be adjusted in height or position, changing the microenvironment around each plant level. The design of these trays, their dimensions, materials, drainage patterns, and mobility features, can make the difference between a system that produces healthy crops consistently and one that is plagued by inefficiency, disease, and high labor costs.
The Role of the Tray in Vertical Growing Systems
In any vertical growing system, whether soil-based or hydroponic, trays define the interface between plant and infrastructure. They are where roots live, where nutrient solutions are applied or drained, where airflow is either facilitated or obstructed, and where human hands interact most often with the crop. In hydroponic systems, trays may replace soil altogether, holding a thin film of nutrient solution in an NFT (nutrient film technique) setup or supporting cubes of rockwool in a deep flow hydroponic rack system. In other cases, indoor growing trays may be filled with a lightweight substrate like coco coir, perlite, or peat moss, serving as a semi-soil medium within a controlled environment.
When designing for vertical plant production, the tray becomes more than a vessel—it becomes part of a spatial puzzle. The vertical arrangement of multiple tray levels means that light, air, and humidity interact differently at each height. The top tier may have greater light intensity from overhead fixtures but also more heat buildup. The lower tiers may be cooler and more humid, which could encourage fungal growth if airflow is inadequate. The tray's surface, perforations, sidewall height, and drainage slope all influence how water moves and how air circulates around the roots and stems. Poorly designed trays can trap stagnant water, creating anaerobic zones that suffocate roots and foster disease.
Engineering for Mobility and Accessibility
One of the most significant developments in vertical farming is the integration of mobility into tray systems. Rolling grow trays are not simply a convenience; they are an ergonomic necessity in high-density plant production. In a fixed vertical rack, accessing the center of a row often means leaning awkwardly or even climbing onto lower levels, which is inefficient and potentially unsafe. A tray that slides out on rails or rolls along a track allows workers to tend plants, harvest produce, and clean the equipment without excessive bending or reaching.
Mobile vertical grow racks take this concept further by making the entire rack structure move. These racks sit on tracks embedded in the floor, allowing them to be pushed together to save space and then separated to create an aisle where needed. In this configuration, rolling grow trays are mounted onto the mobile racks, combining both horizontal and vertical mobility. The result is a system that maximizes space usage while maintaining accessibility—a crucial factor in urban farms where every square foot of growing space is valuable.
Designing mobility into trays requires careful attention to stability and load-bearing capacity. A tray full of mature plants and saturated growing medium can be surprisingly heavy. The rolling mechanism—whether it's ball-bearing wheels, sliding rails, or a conveyor-style system—must support this weight without jamming or warping. Materials must resist deformation over time, especially in humid environments where metals can corrode and plastics may become brittle.
Integration With Hydroponic Rack Systems
In hydroponic production, tray design becomes even more critical because the tray is directly involved in nutrient delivery and drainage. A well-designed hydroponic rack system uses trays as both plant supports and fluid channels. The slope of the tray may be precisely calculated to allow nutrient solution to flow evenly from one end to the other, ensuring that all plants receive an equal share before the solution drains into a collection tank for recirculation.

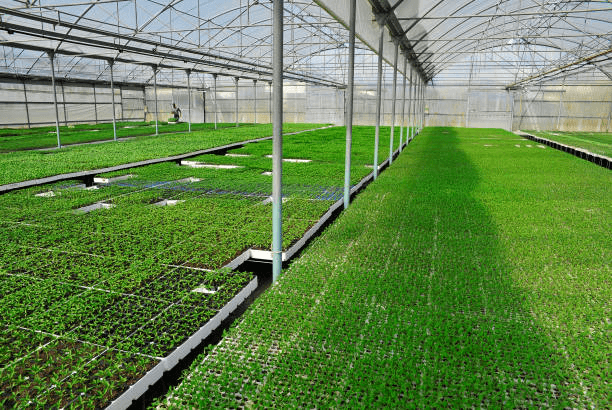

Drainage holes, channels, or gutters must be positioned to prevent pooling while avoiding excessive drying of the medium. In deep flow systems, the trays may be watertight and fitted with floats or markers to indicate solution depth. For ebb-and-flow systems, trays must fill and drain quickly to avoid oxygen depletion in the root zone. This requires smooth, clean surfaces with no corners where algae or debris can accumulate.
The marriage of indoor growing trays and hydroponic rack systems also introduces the challenge of cleaning and sanitation. In a recirculating hydroponic setup, pathogens can spread quickly if biofilm builds up in trays. Designers therefore favor materials like food-grade polypropylene or high-density polyethylene, which are smooth, non-porous, and resistant to chemical sanitizers. Some advanced systems feature removable liners within trays, allowing quick swaps during cleaning cycles without dismantling the rack.
Optimizing Microclimates Within the Rack
In vertical growing systems, the microclimate around each tray level can differ significantly. Light intensity, heat, humidity, and CO₂ concentration vary from tier to tier, and the tray system plays a role in moderating these differences. For example, perforated trays can allow better airflow between levels, reducing humidity pockets that might encourage powdery mildew. However, too much perforation could lead to nutrient solution dripping onto lower levels, which in a hydroponic system may cause contamination or overwatering.
Some designers integrate small fans or ducting channels into the vertical rack to ensure even air distribution. Others adjust tray spacing, sacrificing a small amount of vertical capacity to improve climate uniformity. The material color and reflectivity also matter; white or reflective trays can bounce light upward to the underside of leaves, improving photosynthesis in lower canopy regions.
Ergonomics, Workflow, and Labor Efficiency
A functional tray system must serve not only the plants but also the people who manage them. Labor is one of the most significant costs in vertical farming, and a well-designed tray can reduce labor time substantially. Rolling grow trays that slide smoothly in and out reduce the need for awkward reaching, which in turn lowers fatigue and injury risk. Standardized tray sizes simplify handling, cleaning, and replacement, while built-in handles or grip edges prevent accidents during transport.
Workflow design often dictates the arrangement of trays within mobile vertical grow racks. For example, a grower may design a system where trays are loaded with seedlings in a germination room, then rolled into the main growing area when plants are ready for more light. After harvest, trays can be rolled directly to a washing station, cleaned, and cycled back into production without manual carrying. This continuous loop keeps plants moving through the system efficiently, aligning plant care tasks with natural growth stages.
Material Choices and Durability
The choice of materials for indoor growing trays is both a technical and an economic decision. Lightweight plastic trays are inexpensive and easy to handle, but may warp under heat lamps or degrade under constant UV exposure. Metal trays, often made from aluminum or stainless steel, offer durability and structural rigidity, but add weight and may require insulation or coatings to prevent heat transfer to the root zone.
The durability of rolling mechanisms is equally important. Bearings and wheels must withstand humidity and occasional splashes from irrigation. In hydroponic rack systems, corrosion resistance is paramount; even stainless steel can pit over time if exposed to nutrient solution spills without proper cleaning. In high-turnover facilities, the cost of replacing worn trays or wheels can quickly add up, making initial investment in quality materials worthwhile.
Future Directions in Tray System Design
As vertical farming technology advances, tray systems are becoming more sophisticated. Automation is the next frontier, with conveyor-based rolling grow trays moving automatically between germination, growth, and harvest stations. Sensors embedded in indoor growing trays may monitor moisture levels, nutrient concentrations, or root health, sending data to a central control system that adjusts irrigation and lighting accordingly.
In the most advanced mobile vertical grow racks, trays are designed for robotic harvesting, with standardized dimensions and positioning to match the reach of automated arms. Hydroponic rack systems may feature trays that dock with nutrient delivery modules, allowing quick swaps without interrupting flow to other trays.
Sustainability is also shaping design choices. Recyclable materials, modular construction, and reduced water use are becoming selling points, especially for facilities aiming to market their produce as environmentally responsible. Tray designs that minimize waste—whether by reducing dead space, extending lifespan, or integrating with energy-efficient climate control—will play a role in keeping vertical farming economically viable.
